Size D 06 (03) • Qmax 80 l/min (21 GPM) • pmax 350 bar (5100 PSI)

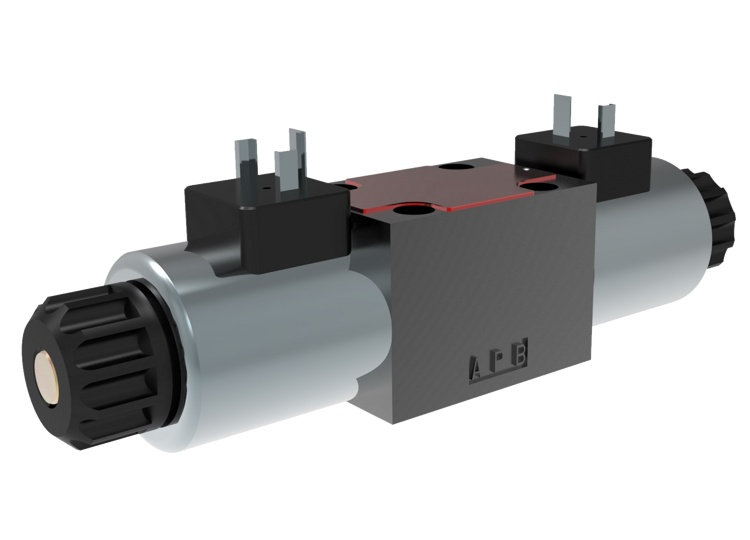

• Direct acting, directional control valve with subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03)
• High transmitted hydraulic power up to 350 bar with optimized design to minimize pressure drop
• Five chamber housing design with reduced hydraulic power dependence on fluid viscosity
• The valve is available with interchangeable DC solenoids, also for AC power supply using a built-in rectifier bridge
• Wide range of solenoid electrical terminal versions available
• Wide range of interchangeable spools and manual overrides available
• CSA Certificate upon request
• Inductive contactless Normally Open and Normally Closed spool position sensor option
• Soft-shift spool speed control option
• The coil is fastened to the core tube with a retaining nut and can be rotated by 360° to suit the available space
• In the standard version, the valve housing is phosphated. The steel parts are zinc coated (240 h corrosion protection in NSS acc. to ISO 9227)
• With optional increased surface corrosion protection of the whole valve 520 h in NSS, e.g. for mobile applications
