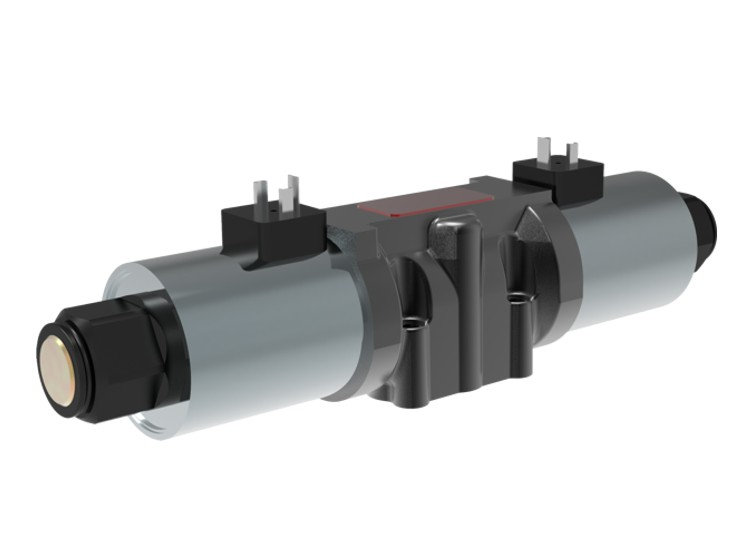

ARGO-HYTOS Directional control valve RPE4-10

SKU N/A Categories Directional Control Valves, VALVES

Price range: 278 $ through 418 $

* The prices do not include: VAT, surcharges, import taxes, shipping, domestic transportation, oil, piping for the system, assembly adjustments at the customer's location, and quality control.

Spool symbols

voltage of solenoids

Clear

Size 10 (D05) • Qmax 140 l/min (37 GPM) • pmax 350 bar (5100 PSI)

Direct acting directional control valve with subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03)
High transmitted hydraulic power up to 350 bar with optimized design to minimize pressure drop
Five chamber housing design with reduced hydraulic power dependence on fluid viscosity
The valve is available with interchangeable DC solenoids, also for AC power supply using a built-in rectifier bridge
Wide range of solenoid electrical terminal versions available
Wide range of interchangeable spools and manual overrides available
CSA Certificate upon request
Inductive contactless Normally Open and Normally Closed spool position sensor option
Soft-shift spool speed control option
The coil is fastened to the core tube with a retaining nut and can be rotated by 360° to suit the available space
In the standard version, the valve housing is phosphated and steel parts zinc-coated for 240 h salt spray protection acc. to ISO 9227
Enhanced surface protection for mobile sector available (ISO 9227, 520 h salt spray)
