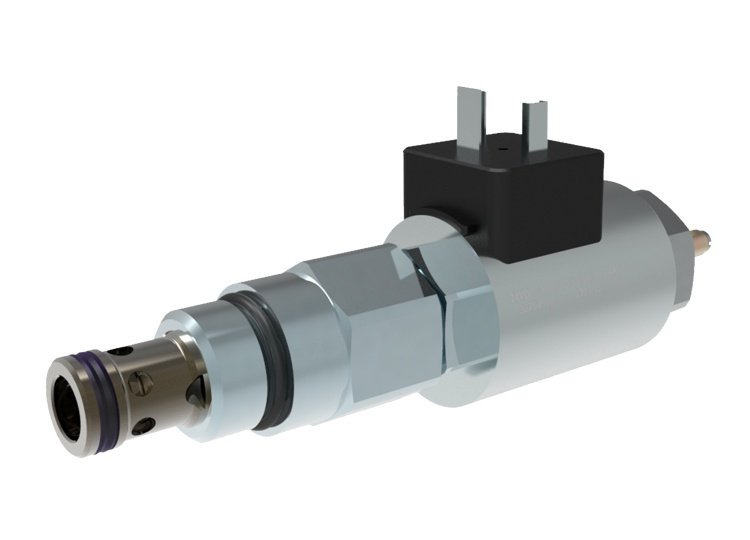

ARGO-HYTOS Proportional valve SR4P2-B2/H*-24E1-A

ARGO-HYTOS Proportional valve SR4P2-B2/H*-24E1-A

ARGO-HYTOS Proportional valve SR4P2-B2/H*-24E1-A

Categories Proportional Valves, VALVES

528 $

* The prices do not include: VAT, surcharges, import taxes, shipping, domestic transportation, oil, piping for the system, assembly adjustments at the customer's location, and quality control.

7/8-14 UNF • Qmax 60 l/min (16 GPM) • pmax 350 bar (5100 PSI)

Pressure in the circuit increases proportional to increasing electric command signal
Low hysteresis, accurate pressure control and low pressure drop
Wide pressure range up to 350 bar
High flow capacity up to 80 l/min
Optional electrical terminal of solenoid: EN 175301-803-A, AMP Junior Timer or Deutsch DT04-2P
Coil supply voltage 12 or 24 V DC
In the standard version, the valve is zinc-coated for 240 h protection in NSS acc. to ISO 9227

Blueprints for download:

PDF Title

Download
