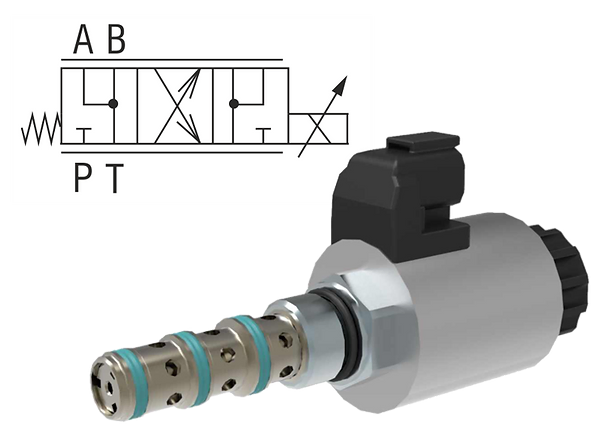

4/3 Proportional Directional Control Valve SD2P-B4/H3Y13-25-24E12A-A

4/3 Proportional Directional Control Valve SD2P-B4/H3Y13-25-24E12A-A

206 $

* The prices do not include: VAT, surcharges, import taxes, shipping, domestic transportation, oil, piping for the system, assembly adjustments at the customer's location, and quality control.

7/8-14 UNF • Qmax 25 l/min (7 GPM) • pmax 250 bar (3630 PSI)

  • Proportional valve with integrated hydraulic lock control function
  • Hardened and precision working parts
  • 12 and 24 VDC standard supply voltage of coils
  • Optional type of electrical terminal EN175301-803-A, AMP Junior Timer or Deutsch DT04-2P
  • Optional Built-in quenching diode for protection of electronic control unit
  • Economical design
  • Connector positioning thanks to coil rotation around its axes 360°
  • In the standard version, the valve is zinc-coated for 240 h protection acc. to ISO 9227. Enhanced surface protection for mobile sector available for the steel parts (ISO 9227, 520 h salt spray)
